Nix Quality Control Color Sensor

The QC color sensor has been discontinued

With the departure of the QC color sensor, Nix has introduced a new generation of compact color measurement technology with the Spectro 2 – a full featured spectrophotometer that fits in the palm of your hand.

What the QC can do for you!

Mobile Analysis

Perform quality analysis on the go with our wireless measurement solution. Simply pair the Nix QC with your smartphone or tablet.

Data Management

Easily review and export your scans directly within the Nix QC App log. Any scans that do not meet your set threshold are flagged and marked for quick identification and error prevention.

Batch regulation

Maintain color consistency between factory batches by setting custom Delta E thresholds within the Nix QC App.

Variation Control

Control variation between each step of your workflow. From formulation to production, ensure your colors are within your spec.

Reduce Cost

With better control over your batches, you’ll reduce waste, rework, and eliminate costly errors from the equation.

Made for all surfaces

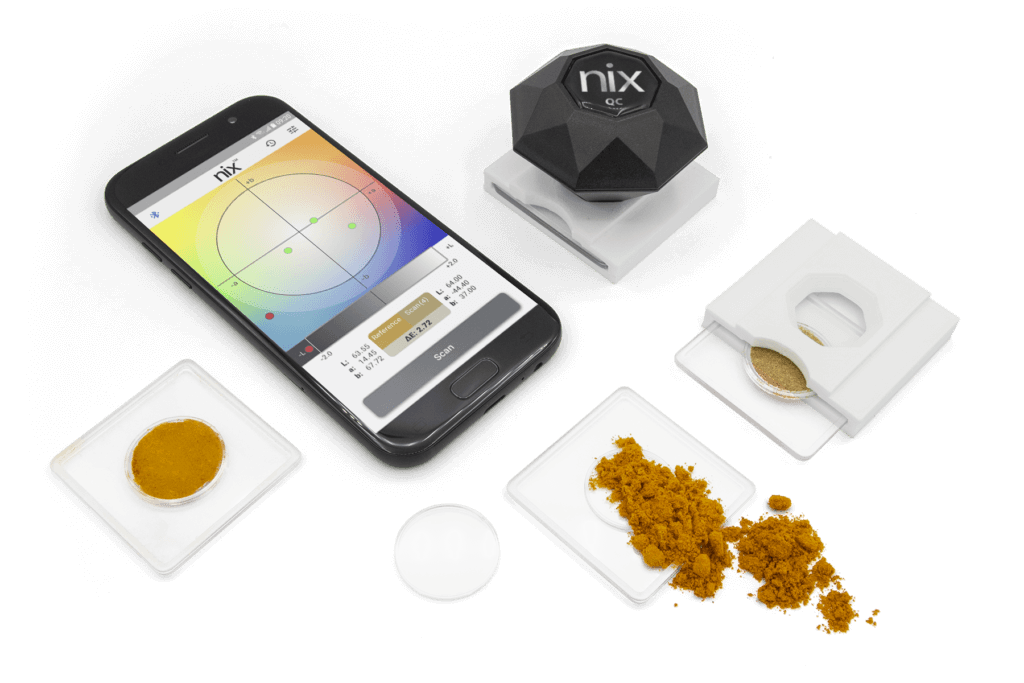

With the Nix QC’s available accessories and adapters, you have the ability to measure almost anything: from solids, liquids, powders, and gels, to patterns and non-uniform surfaces

Solids, powders, liquids — you name it!

We’ve mastered the art of scanning a magnitude of surface types by creating a modular adapter system that works in conjunction with the Nix QC. Whether you need to measure solids, powders, liquids, or soft and/or textured surfaces, you’ll be able to rely on your Nix QC for precise color measurement.

Designed for the professional

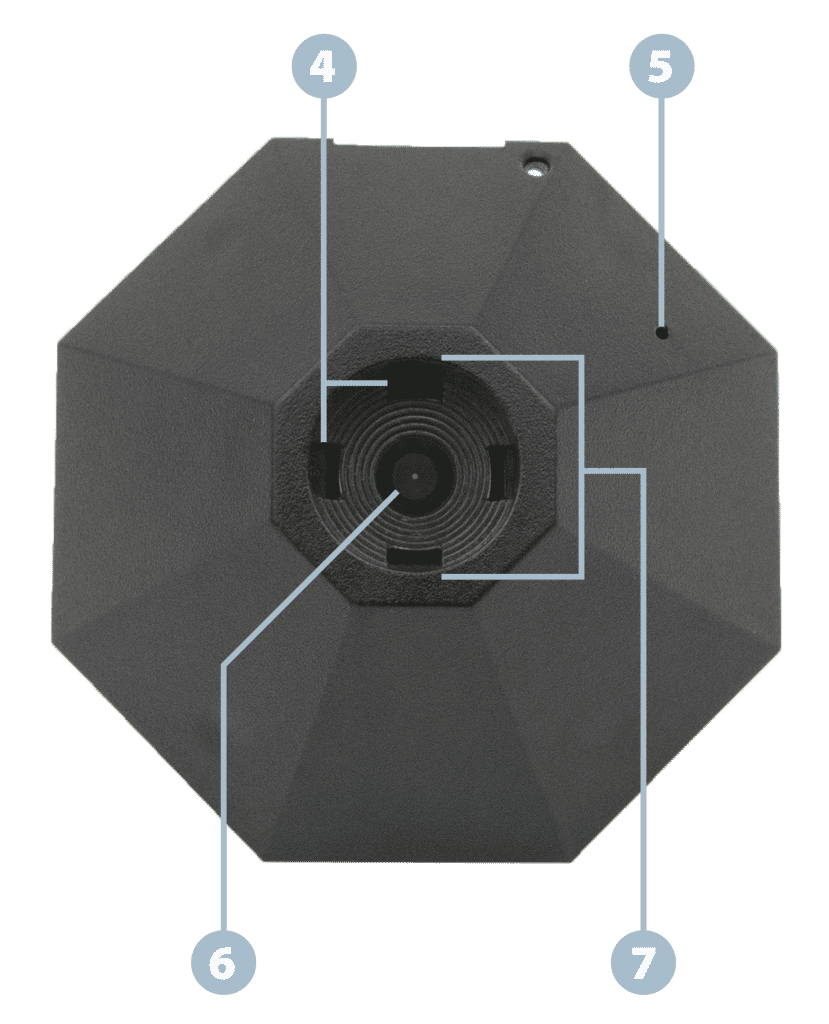

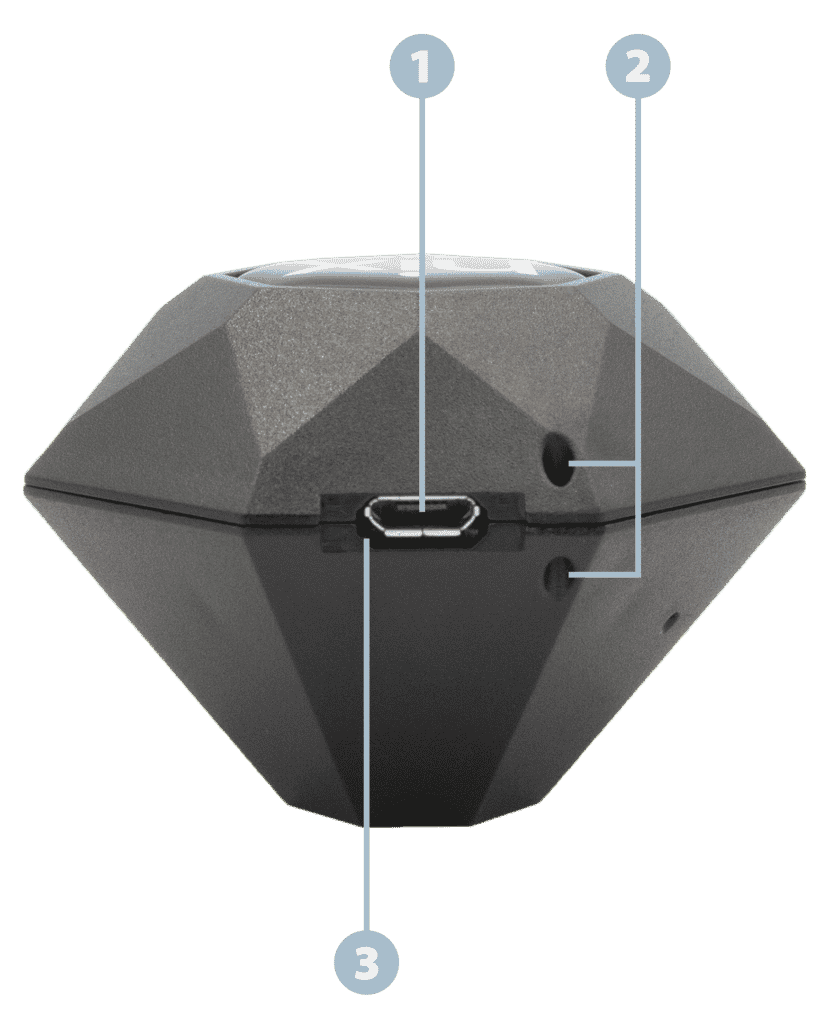

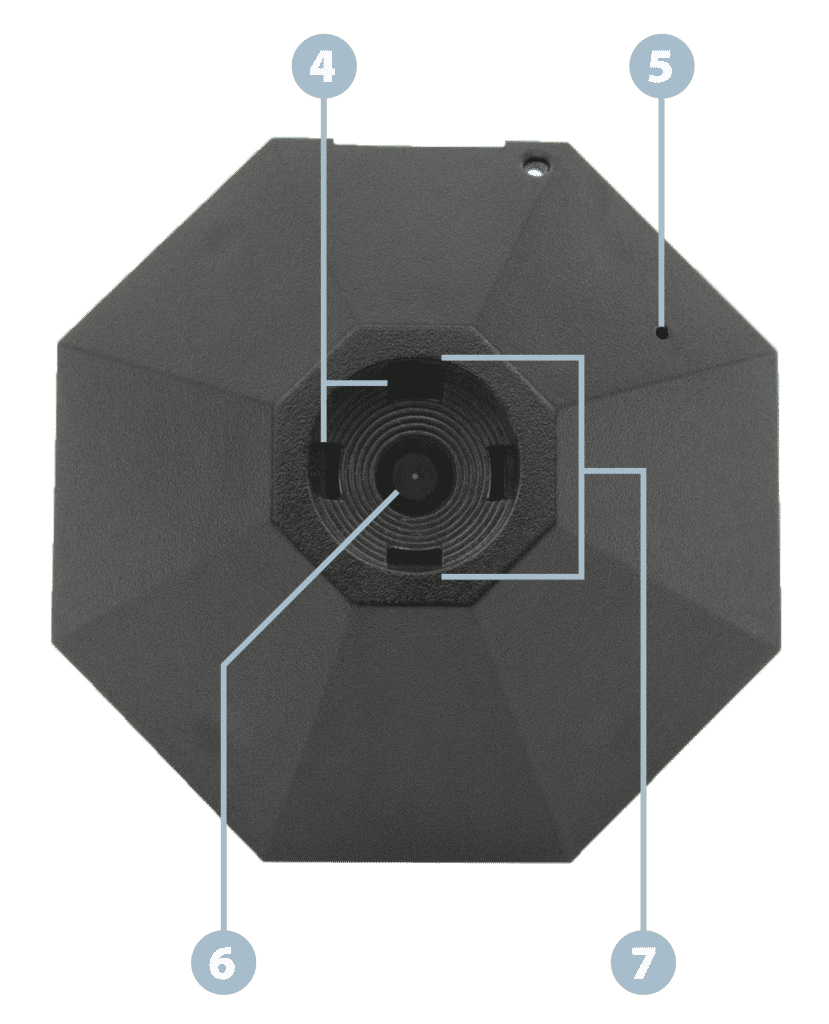

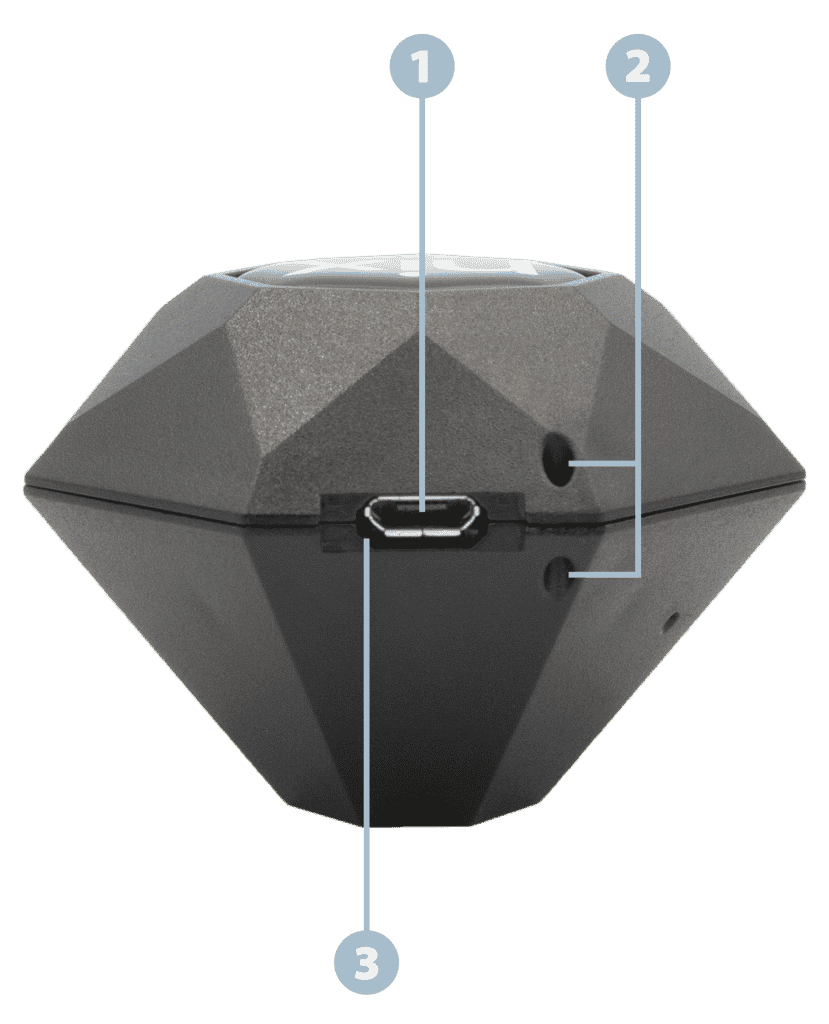

  1. USB Charging Port
  2. Lanyard Attachment Point
  3. Blue LED Charging Indicator
  4. Broad Spectrum White LEDs with 98+ CRI (2x 5000K, calibrated for D50; 2x 6500K, calibrated for D65)
  5. Factory Firmware Reset Button
  6. Damage and Crack Resistant Lens
  7. Aperture (15mm diameter)

Specifications

Hardware

Size
2.4×1.7 in (6 x 4.3 cm)


Weight
1.5 oz (43 grams)


Aperture Size
0.6 in (1.5 cm)


Color
Black


Software

Device Requirements
Smartphone or tablet operating:
–   Android 4.4 or newer with Bluetooth 4.0
–   iOS 8.0 or newer


Compatible Apps
Nix Toolkit App
–   Download for Android   |   Download for iOS
Nix Pro App
–   Download for Android   |   Download for iOS
Nix Paints
–   Download for Android   |   Download for iOS



* All apps are free to download


Available Languages
English, German, Greek, Italian, Dutch, Portuguese, Spanish


Technical

Measuring Geometry
45 / 0°


Light Source
4x High-CRI LEDs designed specifically for color reproduction


Illuminants
Natively calibrated to D50 2° and D65 10°


Observer Angles
2°, 10°


Color Difference
DE76, DE2000


Battery Size
Lasts for about 16,000 scans before recharge is required
